TECNA spot welders are designed to meet every need of spot welding.The new stationary ergonomic frame designed by TECNA helps to facilitate the operator’s work.
The control unit has been positioned frontally to allow the operator to view the welding data even during the working cycle. The pneumatic commands and the compressed air pressure gauge have been placed at the top for easier adjustment and reading.

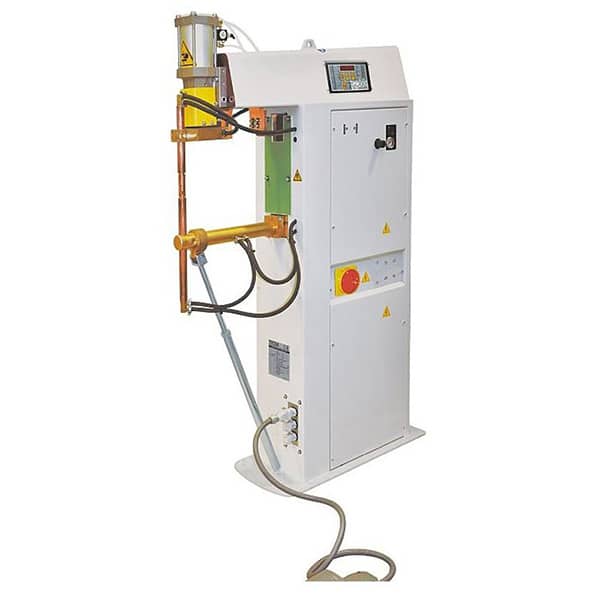

Press Welder
Spot welders with water-cooled epoxy resin coated transformer, water-cooled arms, electrodes and electrode-holders.
Standard Features:
- Chrome-copper electrode-holders for heavy duty and long life, designed for both straight and angled fitting.
- Microprocessor control unit TECNA TE101.
- USB Port for data storage (only with TE550).
- The air operated lubrication free cylinder eliminates oil mist.
- Protected filter assembly with gauge.
- Two-stage electric foot-pedal for clamping and welding pieces only if correctly positioned.
- Pre-connected for additional electric foot-pedal for the direct recalling of welding program No.2. This function is helpful when different kinds of welding are to be performed on the same piece.
- Adjustable electrodes stroke for max. working rate.

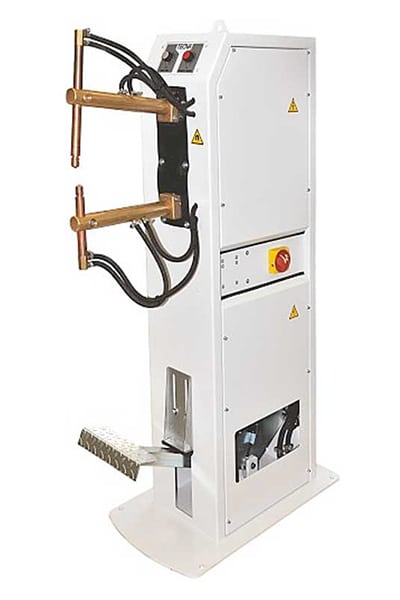

Rocker Arm Welder
Standard Features:
- Arms adjustable in length allowing a better working flexibility.
- Chrome-copper electrode-holders for long life and heavy duty service, designed for straight and angled fitting.
- Adjustable electrode stroke.
- Epoxy resin coated transformer.
- Water-cooled transformer, arms and electrodes.
- Microprocessor control unit TECNA TE101.
- The air operated lubrication free cylinder eliminates oil mist.
- Electrode force adjustment with air filter reducer with gauge.
- Semi-automatic drainage system.
- Electrode speed control valves, shock absorber for cylinder’s end of stroke and air discharge silencers.
- Two-stage electric foot pedal, that besides its normal use in automatic and single spot mode, allows the operator to bring the pieces together and to weld them only when correctly positioned.
- Pre-arrangement for the connection of a second electric two-stage foot pedal item 70284.
- The addition of the second foot pedal allows to recall two different adjustments of time-current. This function is helpful when different kinds of welding are to be performed on the same piece.
